Automatic Wire Cutting Stripping And Crimping Machine Multi - Functional

RKENS TECHNOLOGY CO.,LTD
Contact Now

Automatic Wire Cutting Stripping And Crimping Machine Multi - Functional

Brand Name : RKENS

Model Number : RS-360-1

Place of Origin : china

Name : Automatic Multi-Core Cable Wire Cutting And Stripping Machine For Multi-Conductor Cable

Available : For multi-conductor cables

Cut length : 0.1-9999MM

Strip length : 50MM or longer

Max cable diameter : Can customize machine for different size

Type : Automatic Type

MOQ : one set

Price : negotiable

Packaging Details : Carton box or wooden box

Delivery Time : 5-7 days

Payment Terms : TT

Supply Ability : 300sets/month

Contact Now

Automatic Multi-Core Cable Wire Cutting And Stripping Machine For Multi-Conductor Cable

Intro:

Automatic cable wire cutting and stripping machine for different size of multi-conductor cables. Machine can work for both electric single core or multi-conductor cables . Cut length is 0.1-9999MM adjustable. Standard machine can make max 50MM strip length. However we can modify machine to strip 200MM or longer.This machine can cut and strip outer jacket only. If you need strip inner insulation, we have RS-3F or other pneumatic machine.

Mult-core cable cutting and stripping Models:


RS-360 : Cut and Strip multi-conductor cables within 8MM OD. Max strip length: 50MM

RS-360-1 : Cut and Strip multi-conductor cables within 8MM OD. Max strip length: 200MM or longer

RS-16 : Cut and Strip multi-conductor cables within 12MM OD. Max strip length: 50MM

RS-16T : Cut and Strip multi-conductor cables within 12MM OD. Max strip length: 200MM or longer

Note: For round multi-conductor cable, it can cut and strip outer jacket only. For flat double-core cable, it can cut, strip both outer jacket and inner insulation.

Suitable:

  • Suitable for round or flat multi-conductor cable cutting and stripping. Also it works for single core electric wire.
  • Round and Flat multi-conductor cable can not use same jig
  • According to your cable size, we will select suitable machine.
  • RS-360 is for max 8mm OD cable. And RS-16 is for max 12MM OD cables

Specification:

Model RS-360-1 RS-16T
Power Supply 220V/110V 50HZ/60HZ 220V/110V 50HZ/60HZ
Name Automatic Multi-Core Cable Wire Cutting And Stripping Machine Cutting and stripping machine for multi-conductor cable
Available wire Round or flat Multi-conductor cable, electric wire. Round or flat Multi-conductor cable, electric wire.
Max cable diameter Max 8MM OD Max 12MM OD
Strip length 200MM or longer 200MM or longer
Cable size Within AWG8 (10sqmm) Within 16 sqmm
Weight 32KG 50KG

Feature:

1.Fast speed cutting and stripping machine for wiring harness processing.

2.Multi-functional machine. For electric single core wire, multi-conductor cable.

3. LCD display shows parameters. Press buttons to set length, quantity,etc.

4. Nice appearance, simple operation,convenient maintenance, stable performance, speed, precision higher character.

5. Cut length and strip length can be adjustable easily.

6. Different working mode for different types of wires.

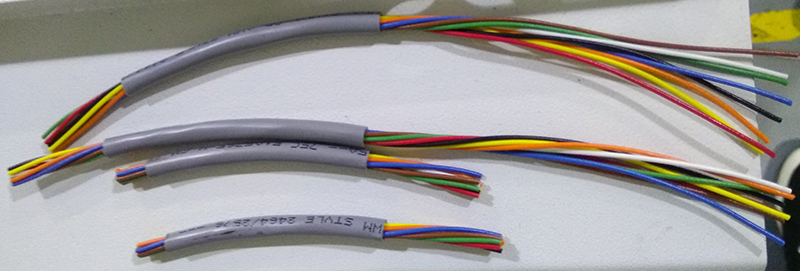

Samples for multi-core cable cutting and stripping

Automatic Wire Cutting Stripping And Crimping Machine Multi - Functional

Automatic Wire Cutting Stripping And Crimping Machine Multi - Functional
