Z Axis Moving Desktop Screwdriver Machine With Automatic Feeding System
Intro:
RS-L601 is an automatic tightening screw machine with feeding system, operator only needs to manually place the product on the platform, step on foot switch, automatically lock the screw, and then manually take out the product, place the next product, and repeat.
Suitable:
1. Applicable screws: M2-M6.
2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.
3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4. Screw materials: iron, copper, stainless steel, etc.
5. Materials of products to be screwed: plastic, iron, aluminum, etc.
Parameters:
| Model | RS-L601 | |
| Name | Z Axis Moving Desktop Screwdriver Machine With Automatic Feeding System | |
| Applicable screws | M1-M6 screw length within 50mm | |
| Screw lead-in type | Air blowing | |
| Screw pocket volume | M2 x6 5000pcs | |
| Screw feeding speed | 0.5s/pcs | |
| Efficiency | 50-70pcs/min depend on screw length | |
| Suittable screw head | Slotted, Phillips, Triangle, Six-Lobe, Hexagon, H-type, etc | |
| Air pressure | 2-3KGF/cm' | |
| Convey distance | 1-4 Meters | |
| Voltage | 220V/110v 50/60HZ | |
| Power | 30W | |
| Feeding machine size | L370*W250*H190mm | |
| Warranty | 1 year for unit machine,3 years for mainboard | |
| Certification | CE | |
| Weight | 35kg |
|
Features:
1. The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe
2. Operating platform. Use pedal to control electric screwdriver of up and down.
3. Electric screwdriver tightens the screw into product automatically.
4. Easy to use. Operator only needs to put product on platform by hand. And then step on foot switch. Machine will tighten screw automatically. Then take out the finished product. And repeat this operation.
5. Save time time for moving hand, fetching screws, moving screws, positioning screws, etc
6. No need to fetch screws by hand, thus won’t cause the secondary pollution of screws by stain or sweat. Screws are not easy to rust.
Advantages Comparing with traditional handheld screwdriver machine
1. No need holding screwdriver by hand. It reduces the labor intensity
2. No need positioning screw hole by hand. It saves working time better. Only need the jig to position screws.
3. Scope of application increased. RS-L601/602 desktop screwdriver machine apply to deep screw hole, big and heavy screws.
4. More favorable.

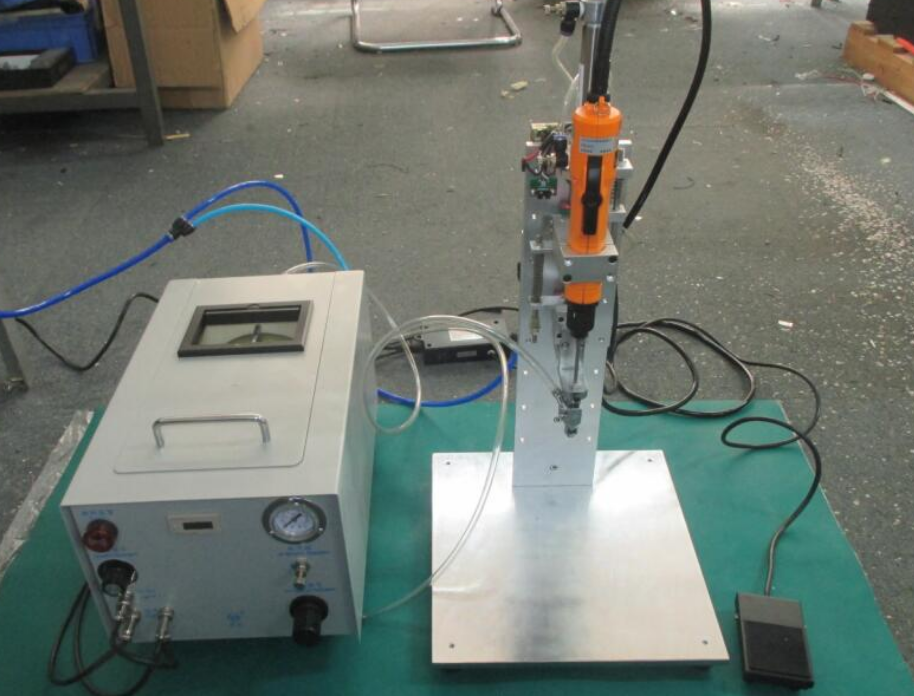

Pictures of Z Axis Moving Desktop Screwdriver Machine With Automatic Feeding System
